Description
Multi Channel Surround
| DTS HD Master / DTS:X | Yes / Yes |
| DTS:X Pro | No |
| DTS Neo:X / DTS Neural:X | No / Yes |
| DTS Virtual:X | Yes |
| Dolby TrueHD / Dolby Atmos | Yes / Yes |
| Dolby ProLogic II / Dolby Surround | No / Yes |
| Dolby Height Virtualization | Yes |
| Front Wide Speakers: Dolby / DTS | No |
| Auro 3D | No |
| IMAX Enhanced | Yes |
| MPEG-H | No |
| Multichannel Stereo | Yes |
| Max Number of Processing (Preamp) Channels | 11.2 |
Sound Enhancement
| Mono Block Power Amp Construction | No |
| Discrete Power Amplifier | 9 |
| 110th Anniversary Audio Tuning | No |
| Iron diecast feet | No |
| Copper plated transformer base | No |
| Premium speaker terminals | No |
| All black interior | No |
| D.D.S.C. HD Digital | No |
| Pure Direct | Yes |
| High Grade Audio Components | Yes |
| Gold Plated RCA Terminals | No |
| Clock Jitter Reducer | No |
| Alpha Processing | No |
| Audyssey | MultEQ XT32 |
| Audyssey Dynamic EQ / Dynamic Volume | Yes / Yes |
| Audyssey LFC | Yes |
| Audyssey APP Support | Yes |
| Speaker Setup Presets | 2 |
| Compressed Audio Restorer | Yes |
Network
| HEOS Multiroom and Streaming | Yes |
| Lossy Formats: MP3 / WMA / AAC | Yes / Yes / Yes |
| Lossless Formats: FLAC / ALAC / WAV | Yes / Yes / Yes |
| DSD Audio Streaming | up to DSD5.6 |
| FLAC HD 192/24 | Yes |
| WAV 192/24 | Yes |
| ALAC 192/24 | Yes |
| Gapless playback | Yes (FLAC, WAV, ALAC, DSD) |
| AirPlay 2 | Yes |
| Roon Tested | Yes |
| Internet Radio | TuneIn |
| Spotify Connect* / Tidal* / Deezer* / others * | Yes / Yes / Yes / Yes |
| Amazon Prime Music* / Pandora* | Yes / Yes |
| Compatible with Remote APP for Smart Phones | Android / iOS |
| Compatible with Remote APP for Tablets | Android / iOS/Amazon Kindle |
| Ethernet Ports | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth Headphone transmission | Yes |
HDMI
| HDMI Inputs: Back / Front | 7 / 0 |
| HDCP2.3 support | Yes |
| HDMI Outputs: Main / Zone | 2 / 1 |
| HDMI max Resolution (8k / 4k) | 8k/60 – 4k/120** |
| Video Conversion Analog -> HDMI | No |
| HDMI to HDMI Scaling | up to 8K 60/50 |
| HDMI: 8K / 4K / CEC / eARC | Yes / Yes / Yes / Yes |
| HDMI: Dolby Vision / HDR 10+ / Dynamic HDR / HLG | Yes / Yes / Yes / Yes |
| HDMI: ALLM / QMS / QFT / VRR | Yes / Yes / Yes / Yes |
| HDMI pass-though in standby mode | Yes |
| DSD Audio Capability | Yes |

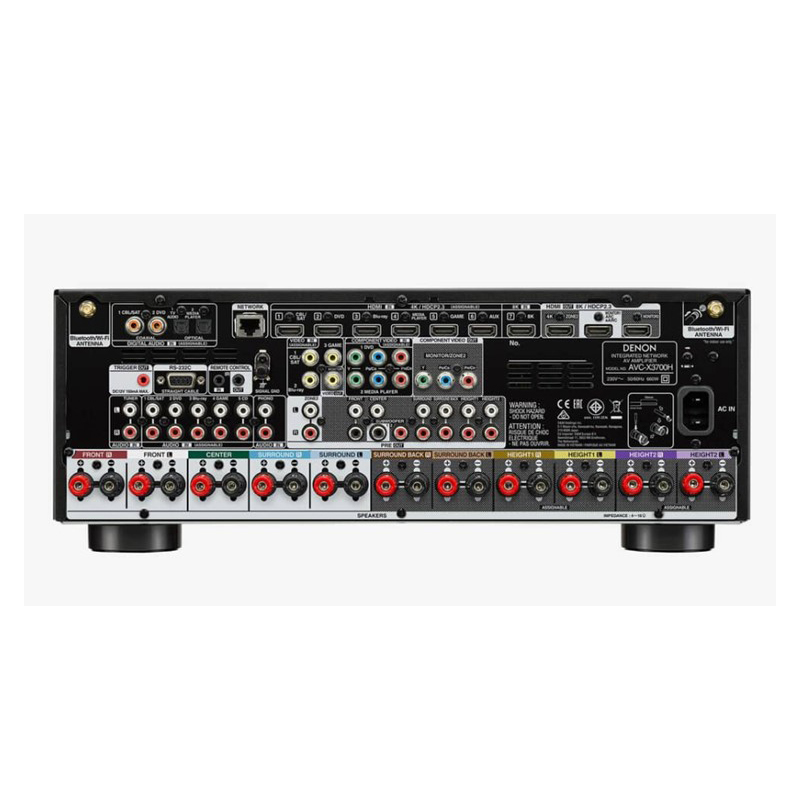

Inputs/Outputs
| Composite In / Out | 3 / 1 |
| Component In / Out | 2 / 1 |
| HDMI In / Out | 7 / 3 |
| Multi-room Video Out: Video / HDMI | No / Yes |
| Analogue In/out | 6 / No |
| Phono (MM) In | Yes |
| Digital In: Optical / Coaxial | 2 / 2 |
| Multi-room Out: Analog / Digital | 1 / No |
| Multichannel Preout | Yes (11.2) |
| Subwoofer Out | 2 (independent) |
| 7.1 Multichannel Input | No |
| Speaker Terminal: Gold Plated Screw / Regular Screw | No / Yes |
| Number of Speaker Terminals | 11 |
| Speaker A / B | assignable |
| Bi-amp Drive | assignable |
| Multi-Room Speaker Terminal | assignable |
| Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB | No / No / No / Yes / Yes |
| USB Audio / Made for iPod / Made for iPhone | Yes / AirPlay / AirPlay |
| FM Tuner with RDS | No |
Specifications
| Number of Power Amps | 9 |
| Power Output (8 ohm, 20 Hz – 20 kHz, 0.08% 2ch Drive) | 105 W |
| Power Output (8 ohm, 20 Hz – 20 kHz, 0.05% 2ch Drive) | No |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 135 W |
| Power Output (6 ohm, 1 kHz, 1% 1ch Drive) | 180 W |
General
| Available colours: Black / Premium Silver | Yes / No |
| Metal Front Panel | No |
| System Remote Control | RC-1239 |
| Pre-programmed / Learnable / LCD Display | No / No / No |
| Power Consumption in W | 660 |
| Power Consumption No-Sound (ECO On / Off) in W | 45 W / 80 W |
| Standby Consumption in W | 0.1 |
| CEC Standby Consumption in W | 0.5 |
| Network Control On Consumption in W | 3.7 |
| Maximum Dimensions Antenna: Horizontal: (W x D x H) in mm Antenna: Vertical: (W x D x H) in mm W/O Antenna: (W x D x H) in mm | 434 x 389 x 167 ( 434 x 389 x 236 ) 【 434 x 379x 167 】 |
| Weight in kg | 12.5 |
| Carton Maximum Dimensions (W x D x H) in mm | 519 x 478 x 242 |
| Carton Weight (inc. product) in kg | 15.1 |
Datasheet : DENON AVC-X3700H
